A robotic hand developed at EPFL can pick up 24 different objects with human-like movements that emerge spontaneously, thanks to compliant materials and structures rather than programming.
When you reach out your hand to grasp an object like a bottle, you generally don’t need to know the bottle’s exact position in space to pick it up successfully. But as EPFL researcher Kai Junge explains, if you want to make a robot that can pick up a bottle, you must know everything about the surrounding environment very precisely.
“As humans, we don’t really need too much external information to grasp an object, and we believe that’s because of the compliant – or soft – interactions that happen at the interface between an object and a human hand,” says Junge, a PhD student in the School of Engineering’s Computational Robot Design & Fabrication (CREATE) Lab, led by Josie Hughes. “This compliance is what we are interested in exploring for robots.”

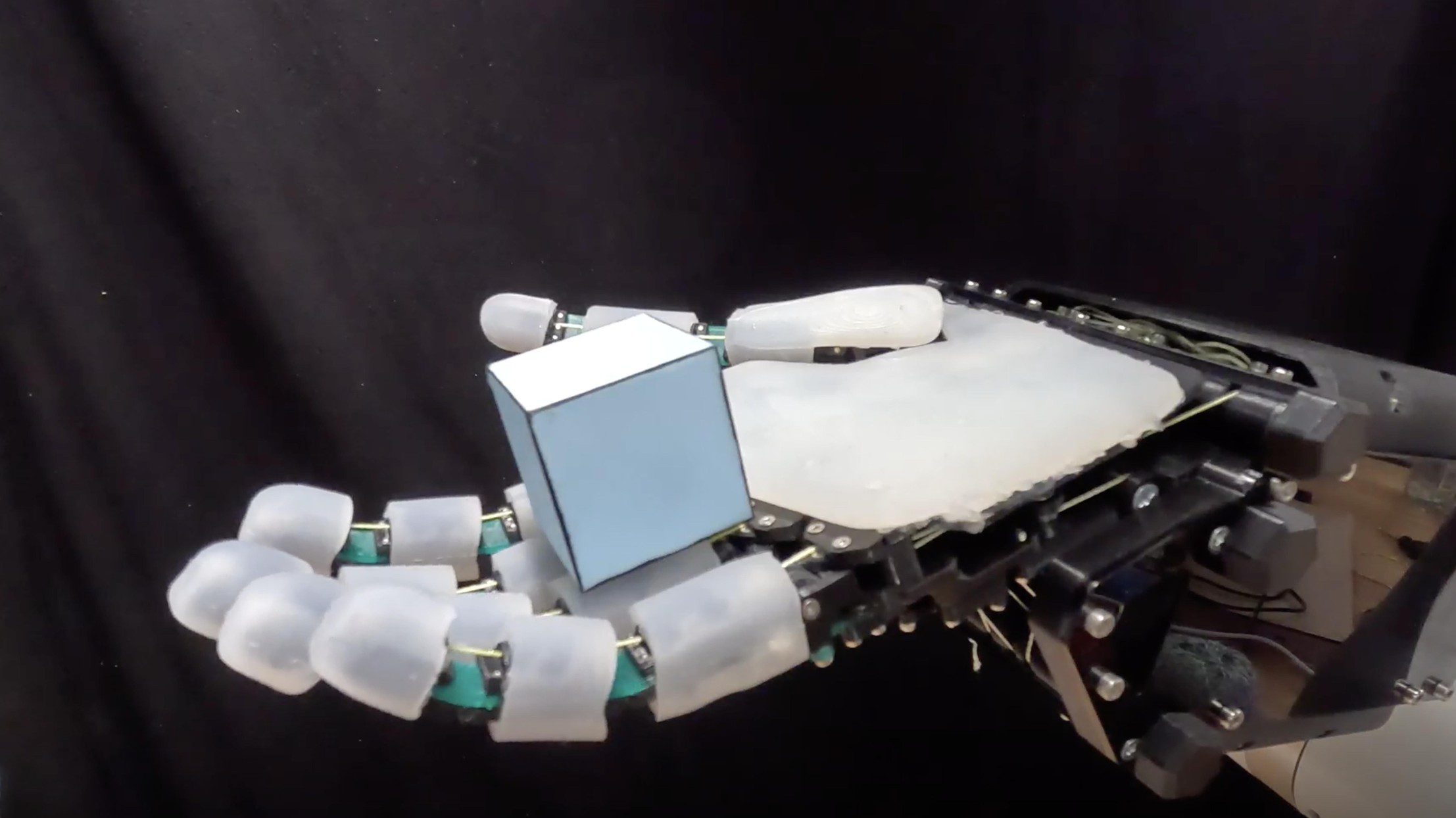

In robotics, compliant materials are those that deform, bend, and squish. In the case of the CREATE Lab’s robotic ADAPT hand (Adaptive Dexterous Anthropomorphic Programmable sTiffness), the compliant materials are relatively simple: strips of silicone wrapped around a mechanical wrist and fingers, plus spring-loaded joints, combined with a bendable robotic arm. But this strategically distributed compliance is what allows the device to pick up a wide variety of objects using “self-organized” grasps that emerge automatically, rather than being programmed.
In a series of experiments, the ADAPT hand, which can be controlled remotely, was able to pick up 24 objects with a success rate of 93%, using self-organized grasps that mimicked a natural human grasp with a direct similarity of 68%. The research has been published in Nature Communications Engineering.
‘Bottom-up’ robotic intelligence

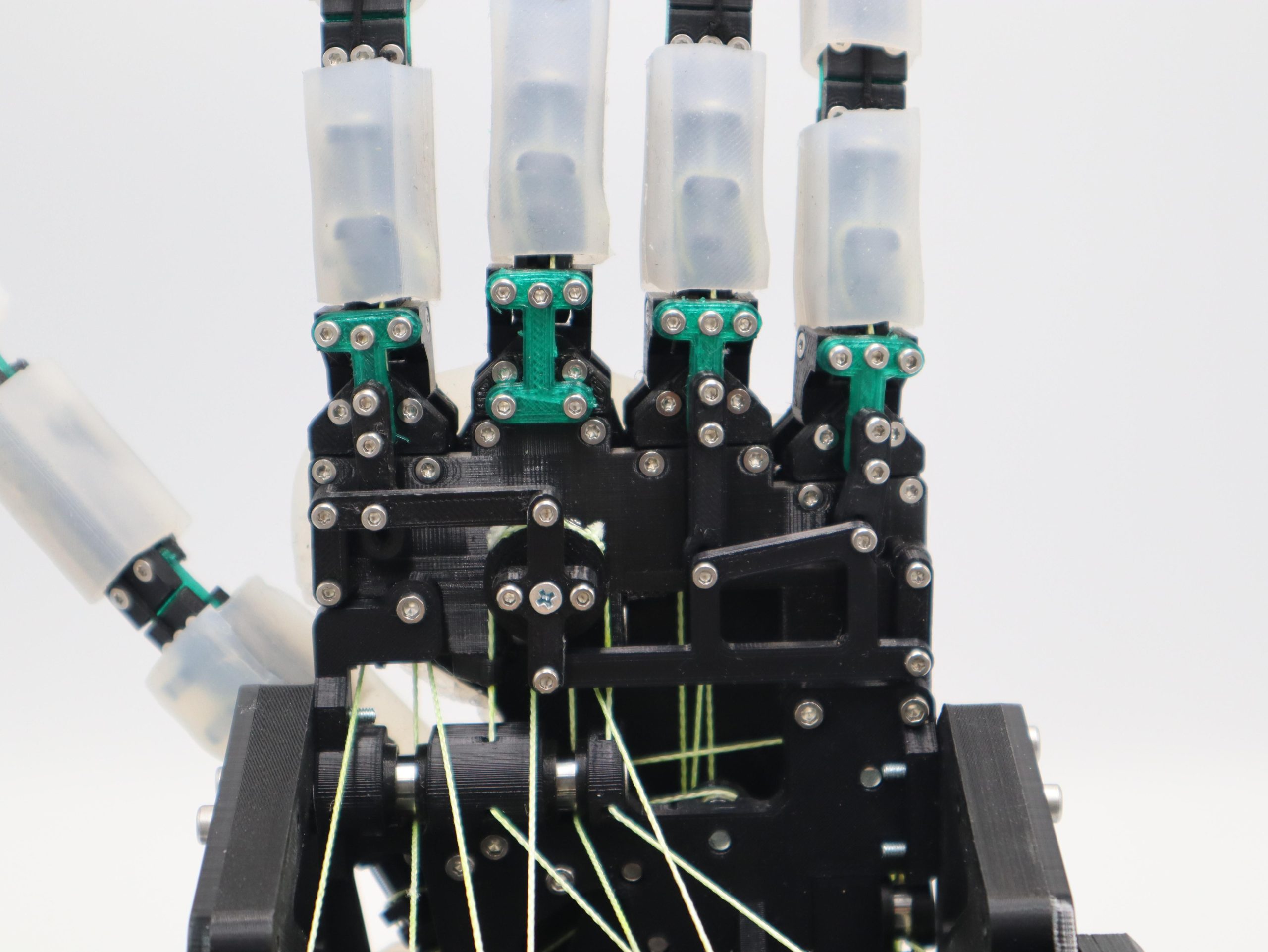

While a traditional robotic hand would need a motor to actuate each joint, the ADAPT hand has only 12 motors, housed in the wrist, for its 20 joints. The rest of the mechanical control comes from springs, which can be made stiffer or looser to tune the hand’s compliance, and from the silicone ‘skin’, which can also be added or removed.
As for software, the ADAPT hand is programmed to move through just four general waypoints, or positions, to lift an object. Any further adaptations required to complete the task occur without additional programming or feedback; in robotics, this is called ‘open loop’ control. For example, when the team programmed the robot to use a certain motion, it was able to adapt its grasp pose to various objects ranging from a single bolt to a banana. The researchers analyzed this extreme robustness — thanks to the robot’s spatially distributed compliance — with over 300 grasps and compared them against a rigid version of the hand.
“We are interested in exploiting the distributed mechanical intelligence of different body parts like skin, muscles, and joints, as opposed to the top-down intelligence of the brain.“
“Developing robots that can perform interactions or tasks that humans do automatically is a lot harder than most people expect,” Junge says. “That’s why we are interested in exploiting this distributed mechanical intelligence of different body parts like skin, muscles, and joints, as opposed to the top-down intelligence of the brain.”
Balancing compliance and control
Junge emphasizes that the goal of the ADAPT study was not necessarily to create a robotic hand that can grasp like a human, but to show for the first time how much a robot can achieve through compliance alone.
Now that this has been demonstrated systematically, the EPFL team is building on the potential of compliance by re-integrating elements of closed-loop control into the ADAPT hand, including sensory feedback – via the addition of pressure sensors to the silicone skin – and artificial intelligence. This synergistic approach could lead to robots that combine compliance’s robustness to uncertainty, and the precision of closed-loop control.
“A better understanding of the advantages of compliant robots could greatly improve the integration of robotic systems into highly unpredictable environments, or into environments designed for humans,” Junge summarizes.
References
Junge, K., Hughes, J. Spatially distributed biomimetic compliance enables robust anthropomorphic robotic manipulation. Commun Eng 4, 76 (2025). https://doi.org/10.1038/s44172-025-00407-4
Author: Celia Luterbacher
Source: EPFL
